Description

Be protected in minutes

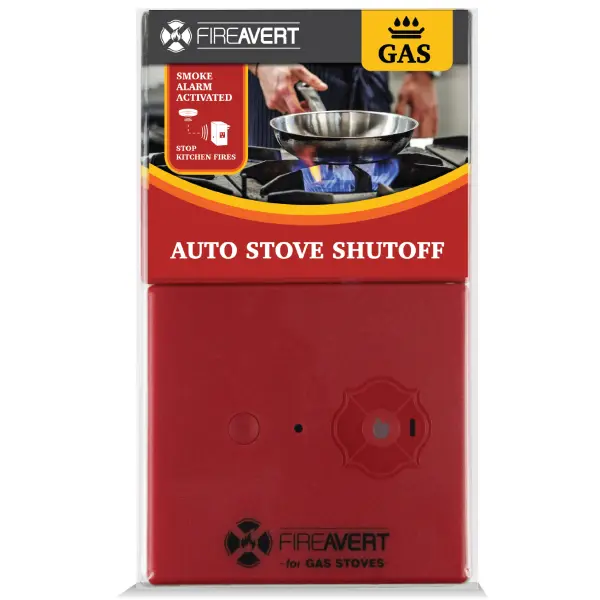

FireAvert is plug-n-play ready. Simply plug into the back of the stove, connect the gas valve, and sync it to the closest smoke alarm. FireAvert is activated by the smoke alarm, turning off the gas to the stove and oven when the smoke alarm is sounding. FireAvert helps mitigate your risk of having a kitchen fire. See video below.

Features

  • No batteries and maintenance free.

  • No professional install needed.

  • Fits in the void space behind most gas stoves.

  • Reusable with a 25-year expected life.

  • Resets at the electrical panel.

  • Light indicates the number of times activated.

  • Sound detection of smoke alarm from up to 60 feet away.

Electrical Specifications

  • Operating Voltage: 120v

  • Amperage: 15 amps 60Hz

  • Plug Configuration: NEMA 5-15 R/P

  • Pole: 2

  • Wire: 3 wire grounding

  • Fire Rating: Housing ABS fire retardant – UL94(5Va,V-0,V-1,V-2,HB)

Physical Specifications

  • Dimensions: 3 ¾ inches (9.52 cm) x 2 inches (5.08 cm) x 3 ¾ inches (9.52 cm) – (LxWxH)

  • Weight: 0.9 LB (0.408 Kg)

  • Metal Valve Weight: 0.9 LB (0.408 Kg)

  • Color: Black

  • Operating Temperature Range: 32°F to 90°F (0°C to 33°C)

  • Operating Humidity Range: 0 to 80% RH non-compensating

  • Mounting: None required. Plugs directly into NEMA 5-15R outlet for electrical

  • Environmental: RY PB Free

LED Modes

LED Mode Green LED Red LED
Power Up Solid Green Off
Standby Solid Green Off
Protection Mode Off Solid

Solenoid Specifications

  • Dimensions:

    • Inlet Sizes: ½ inch NPT Outlet Sizes = 3/8 inch NPT

    • Outlet Sizes: ½ inch NPT Outlet Sizes = 1/2 inch NPT

  • Max Inlet Pressure: ½ inch psi (14 in W.C.)

  • Ambient Temperature: Maximum 175°F / Minimum 0°F

  • Electrical: 6VDC/Max Amp: 600mA

  • Model: GM919 – Natural Gas Only – 100,000 BTU/hr

    • Rates for 1,000 BTU/hr, 0.64 Sp. Gr. gas for natural gas and 2,500 BTU/hr

  • Certification: ANSI Z21.21-2015 • CSA 6.5-2015 – Automatic Valves for Gas Appliances
